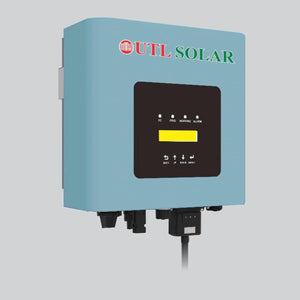

UTL on grid solar inverter 4.6 kw single phase

UTL on grid solar inverter 4.6 kw single phase Description

UTL 4.6KW On Grid Solar Inverter Single Phase – a pinnacle of innovation and sustainability in the realm of solar power. This cutting-edge product combines state-of-the-art technology with unparalleled efficiency, making it the perfect choice for those who demand the best.
Crafted with precision and engineered for performance, this solar inverter offers a seamless solution for harnessing solar energy. With a sleek design and compact size, it effortlessly integrates into any space, providing uninterrupted power supply for your home or business.
Designed for ultimate reliability, this solar inverter boasts a price that will shock you with its affordability. Whether you're a homeowner looking to go off the grid or a distributor in search of the perfect addition to your product lineup, this inverter is a must-have. And with our wholesale options available, it's never been easier to stock up on the best in renewable energy technology.
As the leading distributor in Delhi, Noida, Ghaziabad, Gurugram, and Faridabad, we are proud to offer this top-of-the-line product to our valued customers. Purchase from our dealership today and experience the luxury of free installation and unparalleled customer service.
Elevate your solar power game with the UTL 4.6KW On Grid Solar Inverter Single Phase. Buy now and take advantage of our limited-time offer. Model No: [insert model number]. Make the smart choice for a greener future.

UTL on grid solar inverter 4.6 kw single phase Specifications

Brand                                         UTL

Modal No                                  UTL 4.6 F1 GT

Max. DC Input Power               6 KW

Max. DC Input Voltage             550 V

Start Up DC Input Voltage        80 V

MPPT Operating Range           70~500 V

Max. DC Input Current             13+13 A

Max. Short Circuit Current       19.5+19.5 A

No. of MPP Tracker                   2

No. of String par MPP Tracker 1

Rated Output Power                  4.6 KW

Max. Active Power                     5.06 KW

Nominal Output Voltage           L/N/PE 220/230 (Optional)

Rated Grid Frequency                50/60 Hz (Optional)

Operating Phase                        Single Phase

Rated AC Grid Output Current 20.9/20 A

Max. AC Output Current            22.9/22 A

Output Power Factor                  0.8 leading to 0.8 lagging

Grid Current                                 <3%

DC Injection Current                    <0.5% (mA)

Grid Frequency Range                 50/60Hz

Max. Efficiency                             97.5%

Euro Efficiency                              97.3%

MPPT Efficiency                            >99%

DC Reverse-Polarity Protection    Yes

AC Short Circuit Protection           Yes

AC Output Overcurrent                 Yes

Output Overvoltage Protection    Yes

Insulation Resistance Protection   Yes

Ground Fault Monitoring               Yes

Anti-islanding Protection               Yes

Temperature Protection                  Yes

Integrated DC Switch                       Yes (Optional)

Remote Software Update                Yes

Remote Change of                           Yes

Surge Protection                              DC Type II/AC Type II (Rating Up to 20 KA)

Size                                                    330x323.5x190 mm (LxDxW)

Weight                                               7.5 kg

Technology                                         Transformer less

Internal Consumption                      <1W (Night)

Running Temperature                      -25~65 C, >45C Derating

Ingress Protection                             IP65

Noise Emission (Typical)                   <35 dB

Cooling Concept                                 Natural Cooling

Warranty                                              10 Years

DC Connection                                     MC-4 Matabele

AC Connection                                     IP65 Rated Plug

Display                                                  LCD 1602

Interface                                               RS485/RS232/Wi-fi/LAN
