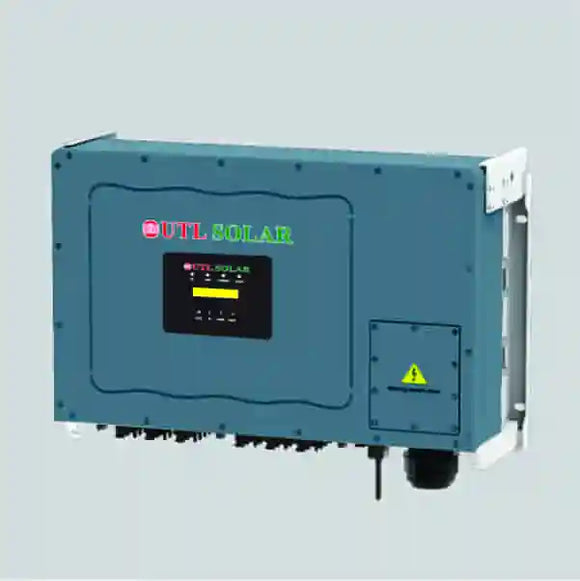

Upgrade your solar power system with the Utl On Grid Solar Inverter 110 kW. Designed to provide efficient and reliable performance, this inverter is perfect for residential or commercial use in Delhi, Noida, Faridabad, Gurugram, and Ghaziabad. Get the best price for this high-quality product at our shop and take advantage of our exceptional service.
UTL on grid solar inverter 110 kw SpecificationsÂ
Model                    UTL 110 F3 GT System Rating             110kVA – 3 Phase Max. DC Power            160kW Max. DC Voltage/Nominal   DC Voltage 1000V MPPT Voltage Range        250V – 950V Full Load Voltage Range     500V-800V Normal DC Voltage         620V Min./Start DC Voltage       200V – 250V No. of MPP Trackers         6 Strings as per MPP Tracker   4 Max. Input Current per      40A
Normal AC Output Power    110kW Max. AC Output Power       121kW Normal AC Voltage          400V AC Voltage Range           400V ± 20% Normal AC Grid Frequency   50/60Hz AC Grid Frequency Range    50/60Hz (± 5Hz) Rated Output Current       166A Max. Output Current        183A THDI                     <3% AC Connection             3W+N+PE/3W+P E Topology                  Transformerless Maximum Efficiency        98.6% Euro-eta                  98.2% All-Pole Fault Current       Yes
Ground Fault Monitoring    Yes Operating Temperature     -25°C to +60°C
Noise Emission            <60dB Protection Rating          IP65 LCD Display               Yes Cooling Concept           Fans Interfaces                 RS485/Wi-Fi Dimension                838x568x323 mm (LxDxW) Weight                   81kG
Warranty                  10 years
