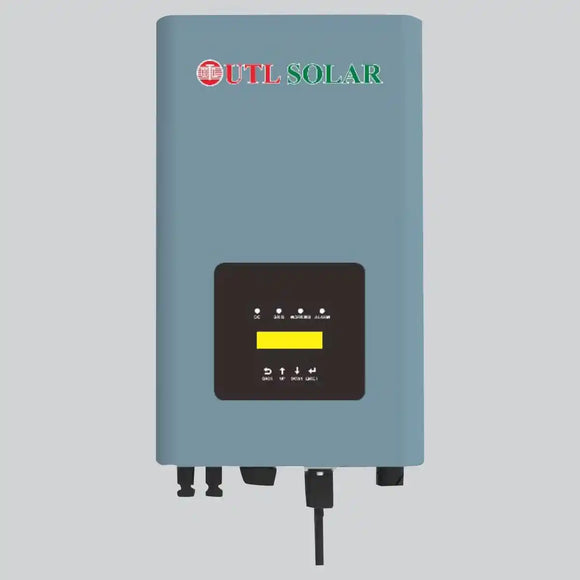

UTL on grid solar inverter 10 kw

UTL on grid solar inverter 10 kw

  • Rs. 67,900
  • Save Rs. 75,350
Tax included. Shipping calculated at checkout.

Only 0 left!

Free Home Delivery ( Delhi NCR )

Free Maintenance Service for 1 Year ( Delhi NCR )

Best Dealer & Shop Stablish Since 1993

Cheapest Price in ( Delhi NCR )

UTL on grid solar inverter 10 kw Description

Transform your energy system with the 10 kW UTL On Grid Solar Inverter - the pinnacle of luxury and performance in solar technology. Crafted with precision and expertise, this inverter is designed to exceed your expectations in terms of efficiency, reliability, and sustainability. The innovative features of this inverter ensure a smooth and uninterrupted energy conversion process, allowing you to make the most out of your solar power system. With a competitive price and exclusive offers available for wholesale distributors, this inverter is the best choice for those seeking a premium energy solution. Visit our shop in Delhi, Noida, Ghaziabad, Gurugram, Faridabad to experience the luxury of owning the finest inverter on the market. Don't miss out on this opportunity to buy the best inverter in India today.



UTL on grid solar inverter 10 kw Specifications

Make                                          UTL

Modal No                                  UTL 10 F3 GT

Max. DC Input Power               13 KW

Max. DC Input Voltage             1000 V

Start Up DC Input Voltage        140 V

MPPT Operating Range           120~850 V

Max. DC Input Current             13+13 A

Max. Short Circuit Current       19.5+19.5 A

No. of MPP Tracker                   2

No. of String par MPP Tracker 1

Rated Output Power                  10 KW

Max. Active Power                     11 KW

Nominal Output Voltage           3L/N/PE 220/380,230/400V                                                                     (Optional)

Rated Grid Frequency                50/60 Hz (Optional)

Operating Phase                        3 Phase

Rated AC Grid Output Current  12.1/11.6 A

Max. AC Output Current            13.3/12.8 A

Output Power Factor                  0.8 leading to 0.8 lagging

Grid Current                                 <3%

DC Injection Current                    <0.5% (mA)

Grid Frequency Range                 50/60Hz

Max. Efficiency                             98.3%

Euro Efficiency                              97.5%

MPPT Efficiency                            >99%

DC Reverse-Polarity Protection    Yes

AC Short Circuit Protection           Yes

AC Output Overcurrent                 Yes

Output Overvoltage Protection    Yes

Insulation Resistance Protection   Yes

Ground Fault Monitoring               Yes

Anti-islanding Protection               Yes

Temperature Protection                  Yes

Integrated DC Switch                       Yes

Remote Software Update                Yes

Remote Change of                           Yes

Surge Protection                              DC Type II/AC Type II (Rating Up to 20 KA)

Size                                                    330x457x185 mm (LxWxH)

Weight                                               10 kg

Topology                                           Transformer less

Internal Consumption                      <1W (Night)

Running Temperature                      -25~65 C, >45C Derating

Ingress Protection                             IP65

Noise Emission (Typical)                   <35 dB

Cooling Concept                                 Natural Cooling

Warranty                                              10 Years

DC Connection                                     MC-4 Matabele

AC Connection                                     IP65 Rated Plug

Display                                                  LCD 1602

Interface                                                RS485/RS232/Wi-Fi/LAN
